Easee Max – 22kW MID-Certified Smart EV Charger

Professional-Grade Charging with Built-In Precision

The Easee Max is a powerful, smart, and fully certified EV charger designed for those who need high-performance charging combined with accurate, billable energy tracking. Ideal for home users with company vehicles, shared residential blocks, or commercial applications where cost allocation and consumption tracking are essential.

With its integrated MID-certified energy meter, the Easee Max ensures compliance with EU standards and enables transparent, fair billing—whether you're charging at home for work, or across a multi-user setup. Packed with advanced load balancing, robust safety features, and a clean, compact design, this is charging—elevated.

Key Features:

✅ Up to 22kW Charging Power – Rapid three-phase or 7.4kW on single-phase
✅ MID-Certified Energy Meter – Accurate, compliant consumption tracking for billing/reimbursement
✅ Smart Load & Phase Balancing – Protects your supply and maximises efficiency
✅ 4G, Wi-Fi & Bluetooth Connectivity – Always online, easy remote management
✅ RFID Access Control – Manage multiple users securely
✅ Built-In RCD Type A & PEN Fault Protection – No earth rod needed
✅ Durable & Weatherproof – IP54 rated with IK10 impact resistance

• Dimensions (mm): H: 256 x W: 193 x D: 106
• Operating temperature: -30°C to +40°C
• Weight: 1.6 kg

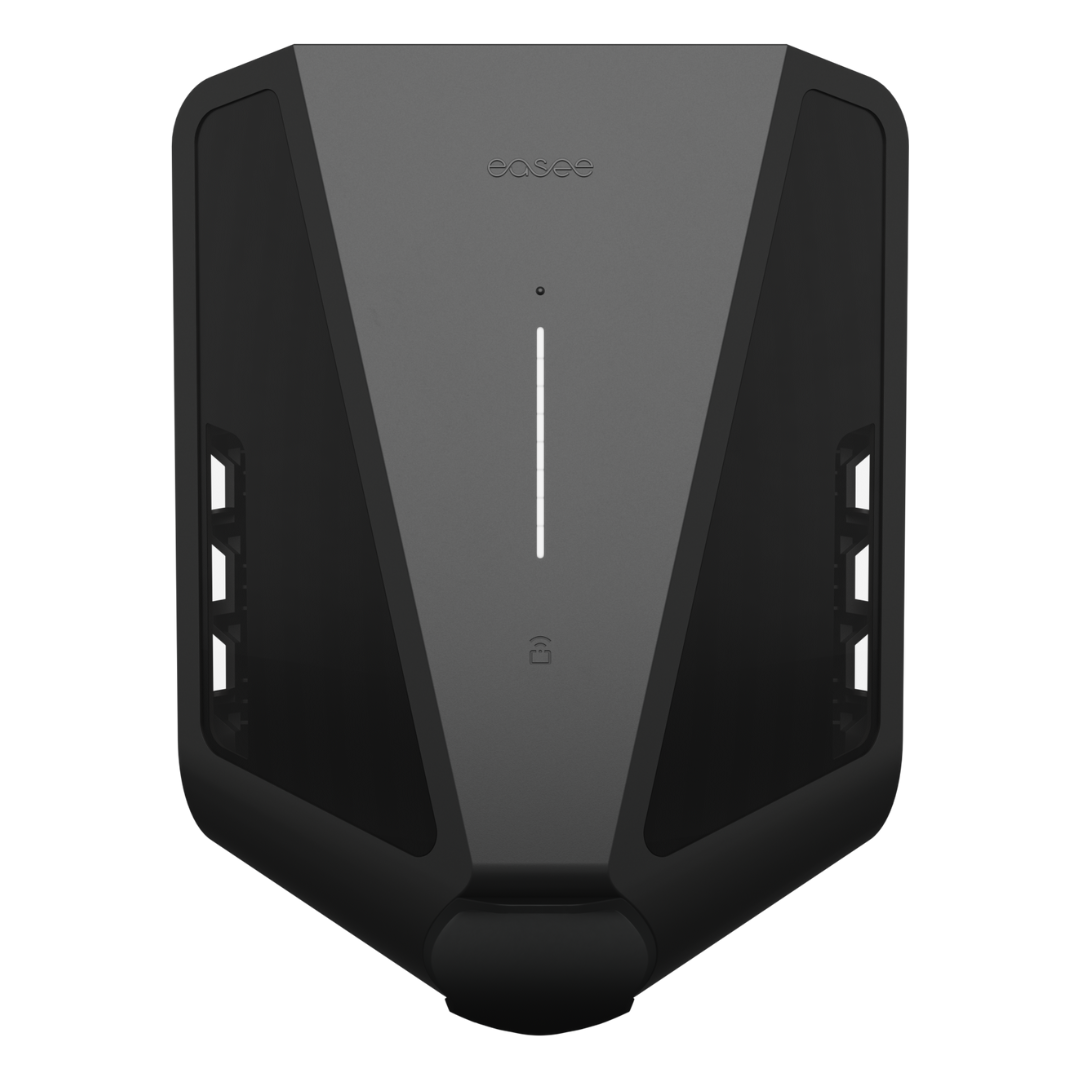

• Available in black*
• Local load- and phase balancing between up to 3 chargers
• Manufacturer warranty: 5 years

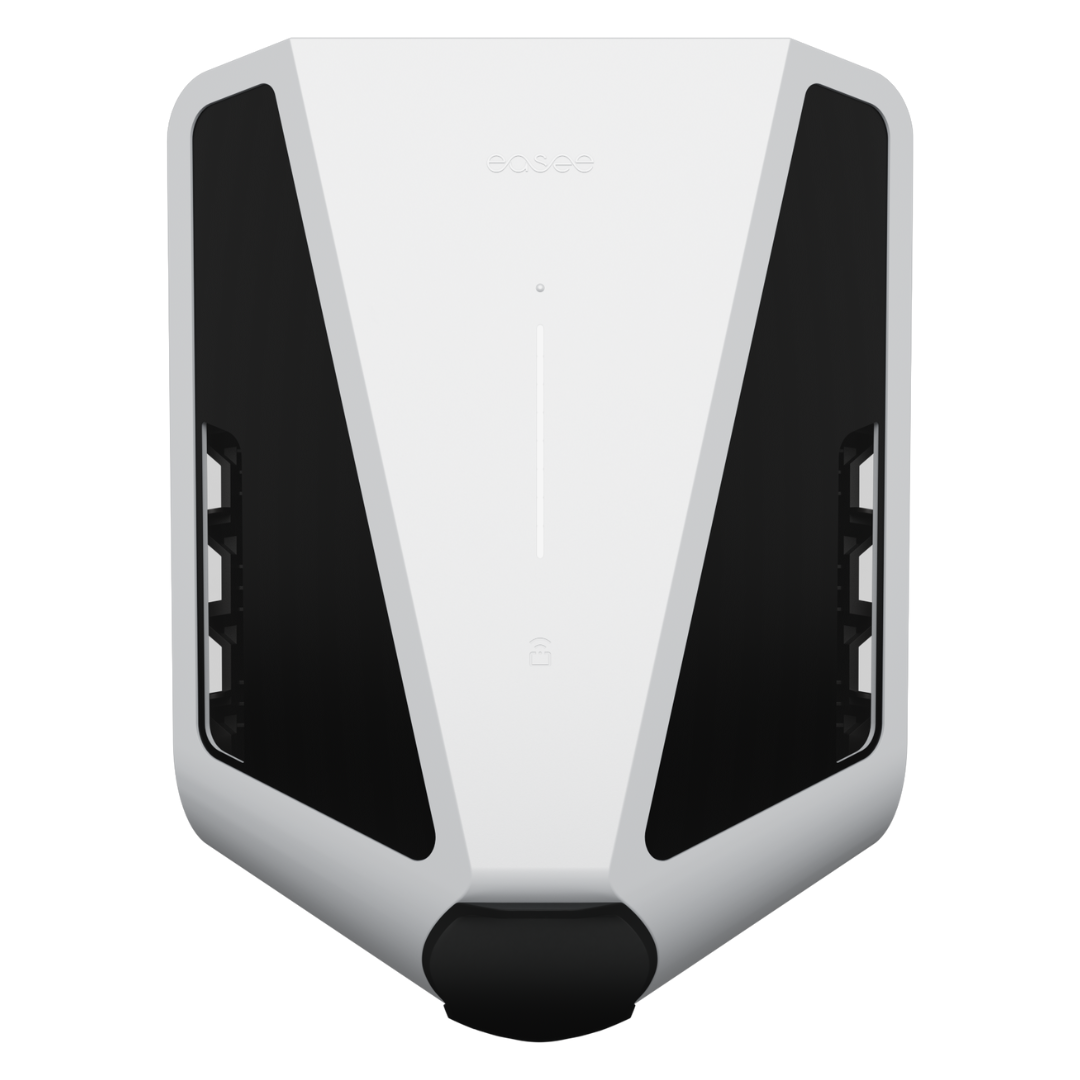

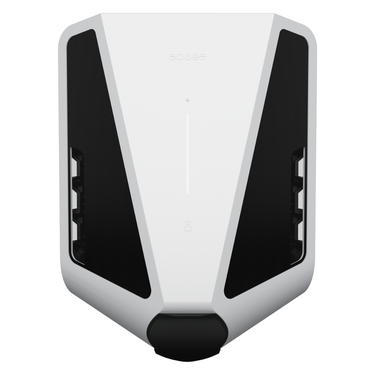

*White covers can be purchased separately.

Voltage: 3x 230 V / 400 V AC (±10%)
Grid frequency: 50 Hz
Power grid: TN, IT, TT

Charge Max charging power:

• 1-phase: 1.4 kW (6 A) – 7.4 kW (32 A)
• 3-phase TN: 4.1 kW (6 A) – 22 kW (32 A)
• 3-phase IT: 2.4 kW (6 A) – 12.7 kW (32 A)

Built-in energy meter MID Class B (±1 %) according to EN 50470-3
Automatic adjustment of charging speed based on available current*
Automatic charging with solar generation*
Automatic phase balancing

Protection:

• Overload protection according to EN IEC 61851-1:2019
• Integrated RCD Type A 30 mA AC according to EN 60947-2, and 6 mA residual direct current detecting device (RDC-DD) complying with IEC 62955, 9.9
• Dust/water: IP54
• Impact resistance: IK10
• Overvoltage category: III
• Read more about Smart Safety

Theft protection:

• The charging cable can be locked permanently in the charging station
• Padlock bracket for theft protection

Installation:

• Configuration is easily done with the Easee Installer App
• Quick set up with Easee Ready, replacing already installed blind covers with a charger
• Auto detection of power grid (TN, IT, TT)
• Read more in our manuals and documentation
